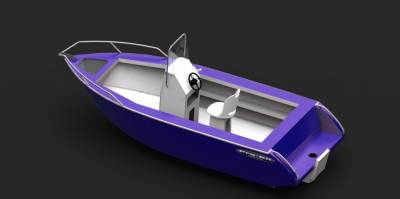

Prokit 500 Centre Console
 |
 |
 |
 |
 |
Basic Kit includes
All plate CNC cut
All fold lines and construction detail marked on the plate.
All extrusion required
Windscreen
Freight to your door within NZ
Plans for construction Jig
Step by step build plans
Kit is upgradable to include the jig CNC cut.
Length Overall: 5.17m / 17.2ft
External Beam: 1.96m / 6.52ft
Deadrise: 18 Degrees
Side Thickness: 3mm
Hull Thickness: 4mm
Top sides: 3mm
Transom Thickness: 4mm
Floor Thickness: 3mm
Recommended HP: 60-90hp
Transom Length: 20'' or 25''
Dry Hull Weight: Approx 540kg
